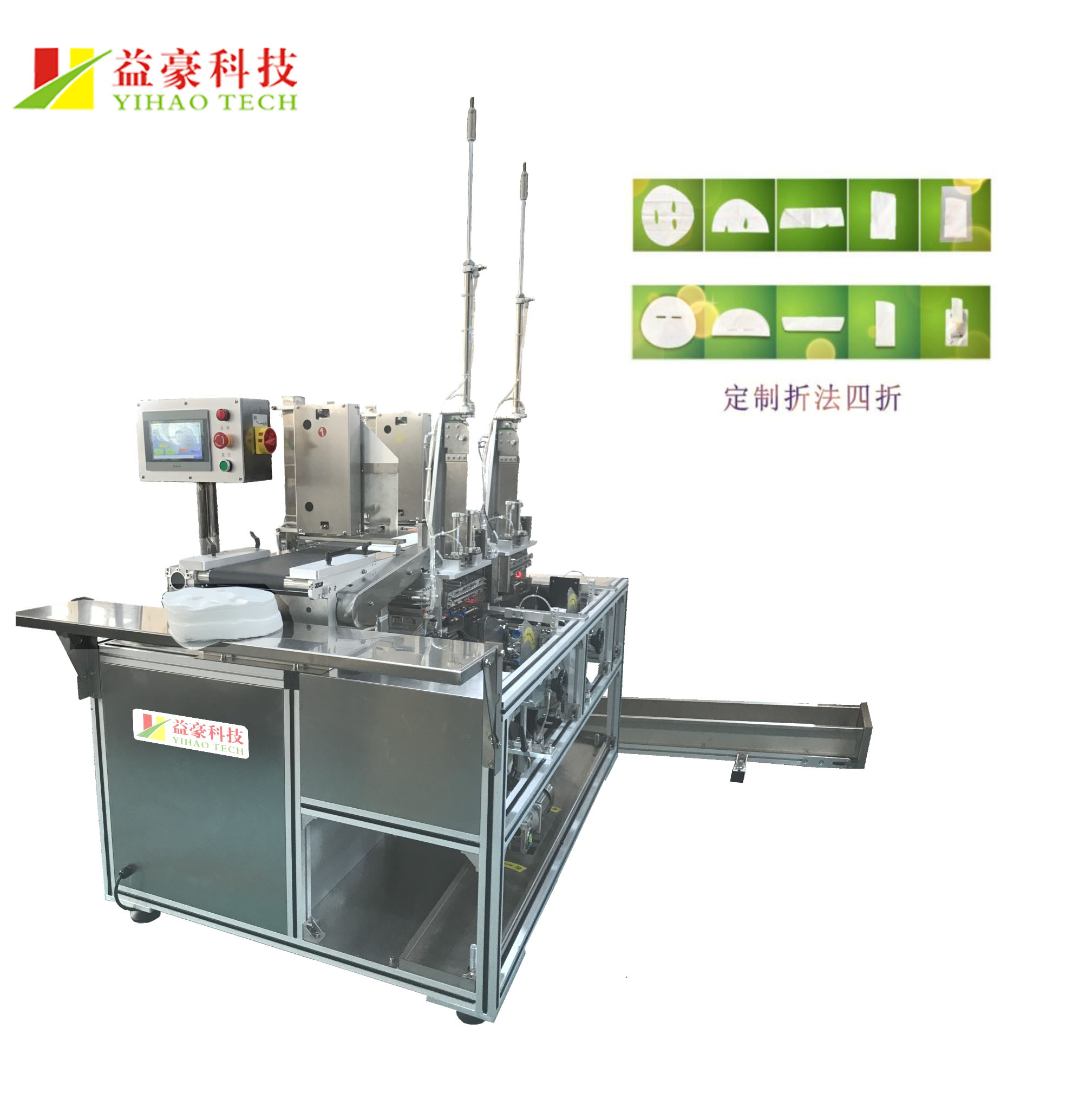

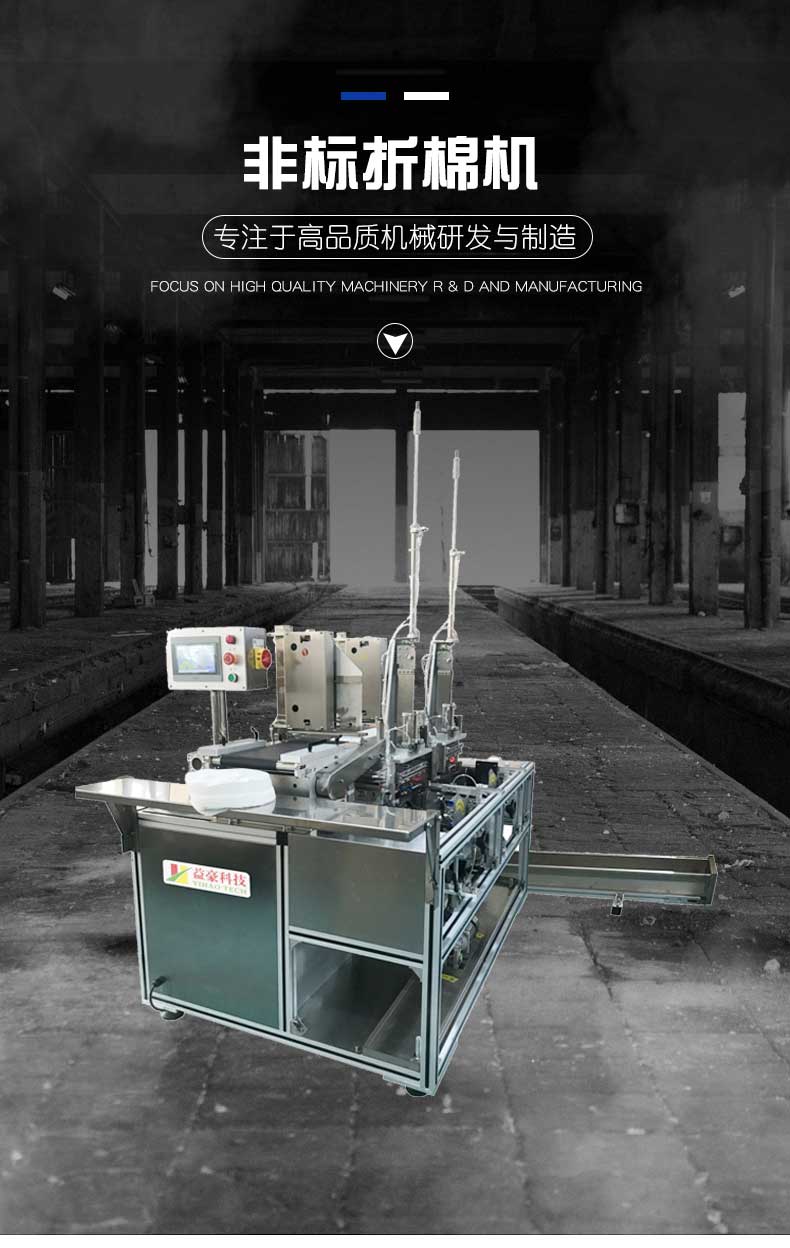

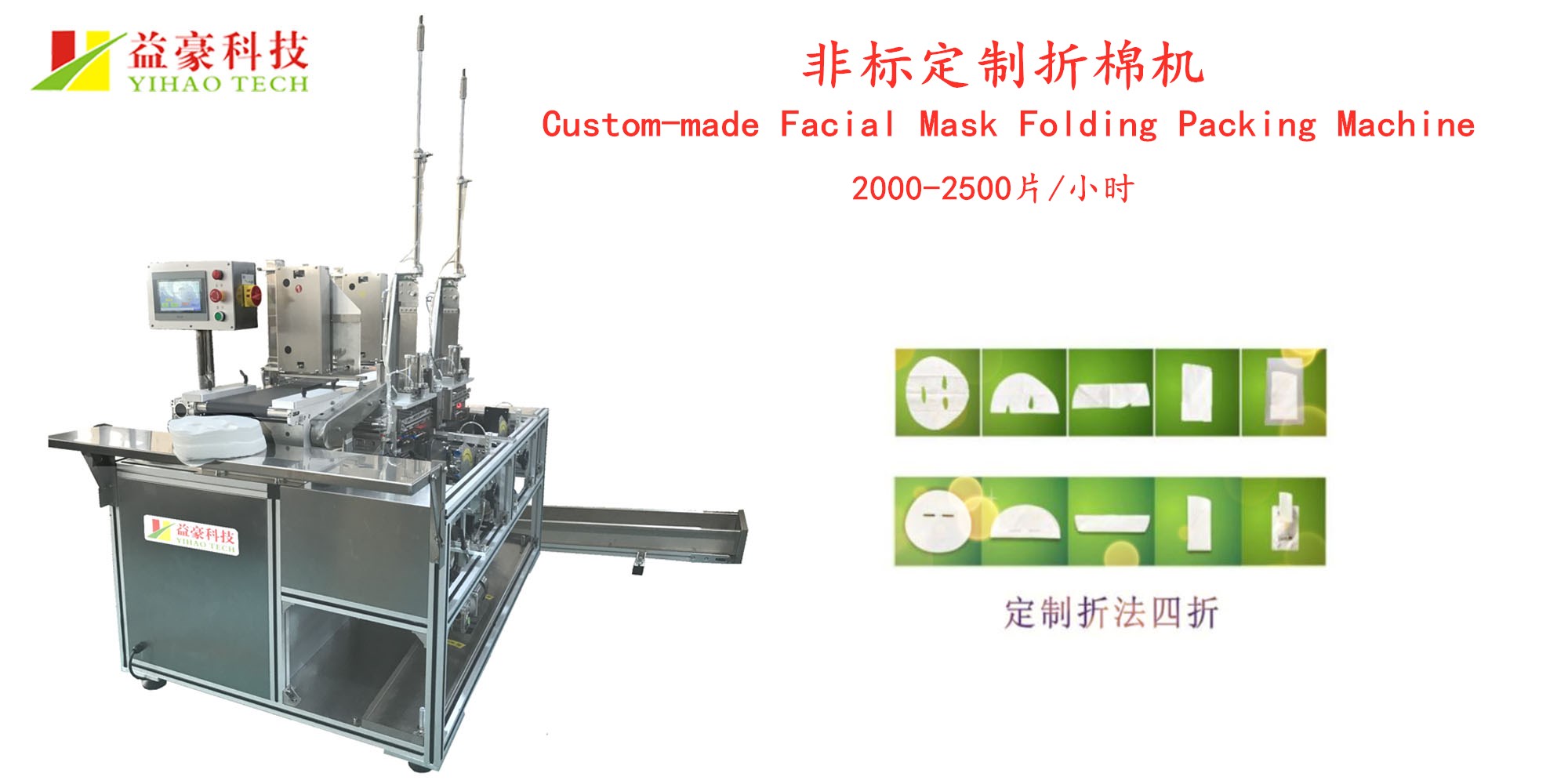

非标定制折棉机

1、工作流程:手工放棉、自动折棉、自动装袋,自动压袋、无棉不折叠,无袋不装袋,出错自动报警,空袋检测;

2、折棉方式: 四折折法 ;

3、机器前端设置有放棉平台,放棉轻松、快捷,放棉速度可轻易达到2000-2500片/小时以上;

4、双头独立控制,可随意控制其中一组的关闭 ;

5、带有不良品报警,剔除功能,带有空袋检测功能,可确保成品中没有空袋;

6、选配收集皮带,可设定袋数,方便收集;

7、PLC+液晶触摸屏控制操作,可以触摸屏上轻松设定参数,产量和出错信息清晰直观;


定制咨询 0755-23228334  18620311051

产品详情 技术特性 技术参数 产品细节 产品视频

产品详情 / Product details

技术特性 / Technical characteristics


1、工作流程:手工放棉、自动折棉、自动转向、自动装袋、空袋检测、自动压袋、成品收集;


2、折棉方式:根据客户要求定制


3、放棉皮带可变频调速;


4、机器前端设置有放棉平台,放棉轻松、快捷,放棉速度可轻易达到2000片/小时以上;


5、双头独立控制,可随意控制其中一组的关闭,


6、带有不良品报警,剔除功能,带有空袋检测功能,可确保成品中没有空袋;


7、选配收集皮带,可设定袋数,方便收集;


8、PLC+液晶触摸屏控制操作,可以触摸屏上轻松设定参数,产量和出错信息清晰直观;


  1. Working procedure: Put the try mask sheet and bags by hands-auto mask sheet folding-auto rotating-auto bagging –Auto empty       bag checking—Auto bag pressing--auto bagging output


2. Folding method: customized according to customer requirements


3. Inverter controlled facial mask sheet feeding belt, speed adjustable


4. With facial mask sheet table for convenient and fast feeding the sheets, speed up to more than 2000pcs/hour.


5. Separate control for two folding units, could turn off either of the folding unit, One button switch between


6. With defective products alarm and reject function, with bag checking function to ensure no empty bag in thefinished products


7. Optional collecting belt , could set production amount, for easy collection.


8. PLC and touch screen control system, easy to view the working status and friendly for operation


9. Selected electrical and pneumatic parts from domestic and international brands.

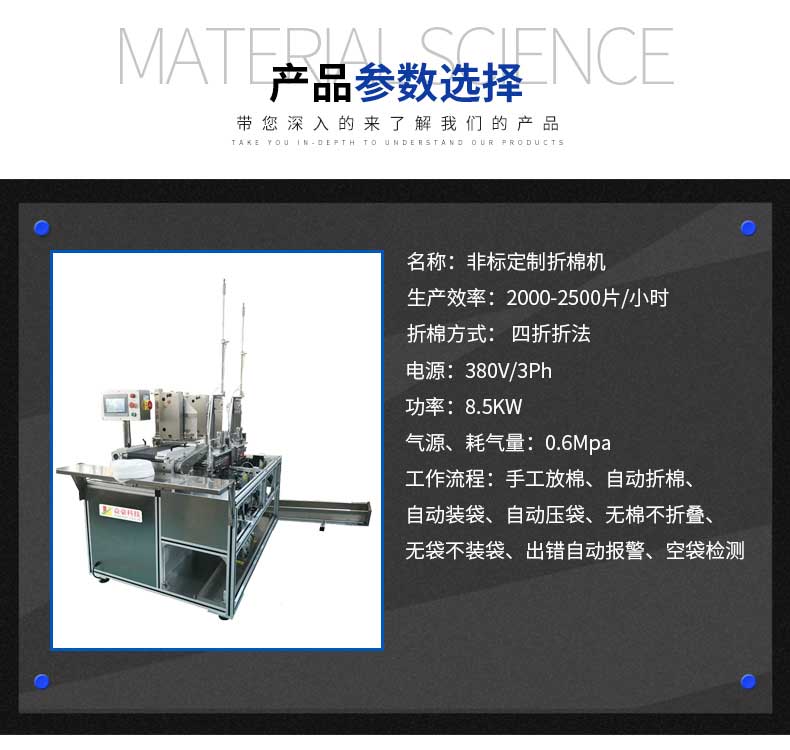

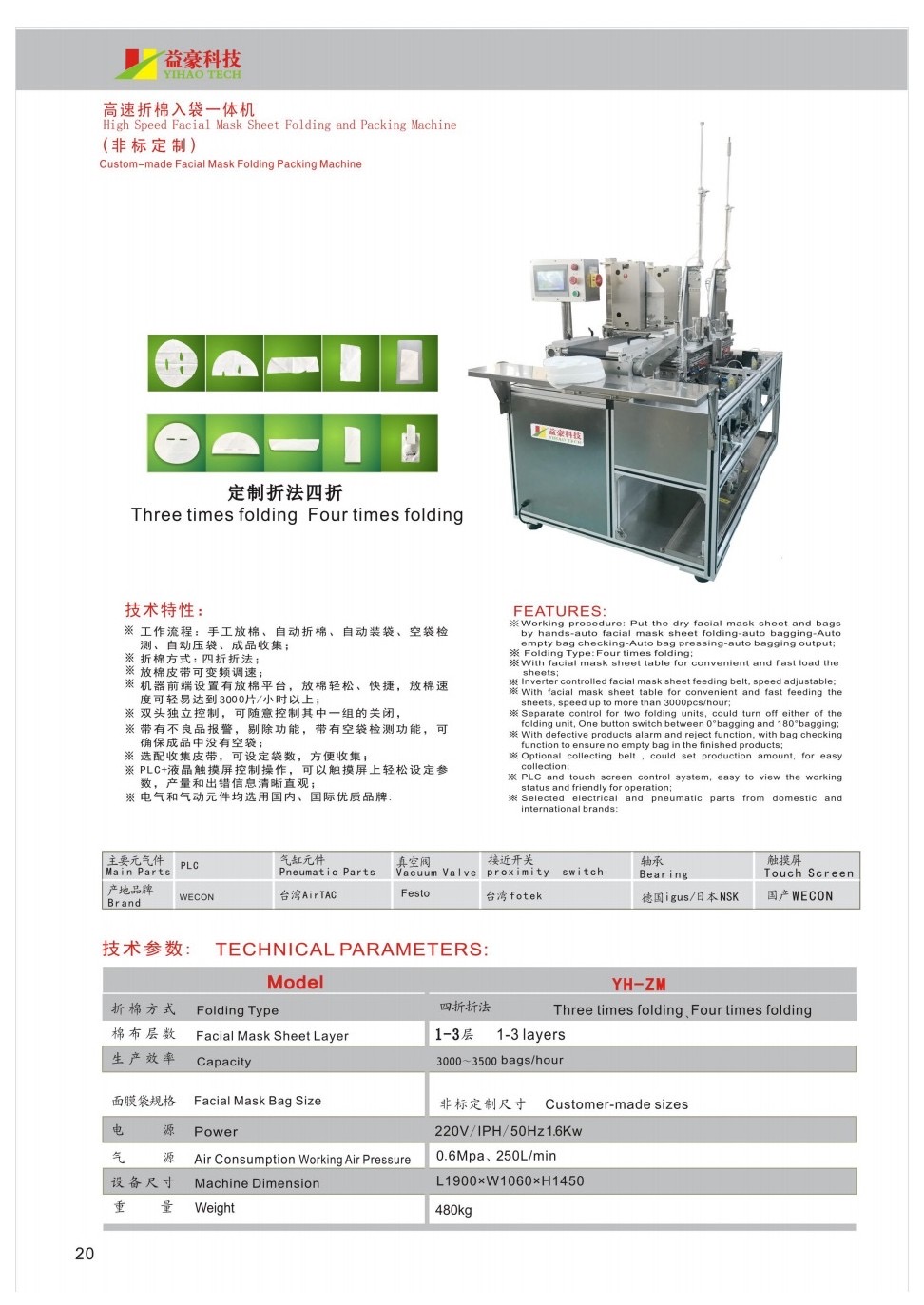

技术参数 / Technical parameters

技术参数  Standard Specification:

型号Model

YH-ZM

动作流程Working procedure

手工放棉、自动叠棉、自动装袋、空袋检测、自动压袋、成品输出

Put the dry facial mask sheet and bags by hands- auto facial mask sheet folding- auto facial mask bag picking up and opening – Auto empty bag checking—Auto bag pressing-- auto bagging output

生产效率Capacity

4000~4500PCS/h

面膜袋规格Facial Mask Bag Size

宽115-165mm 长150-220mm(三折);宽95-165mm 长150-220mm(四折)

W115-165mm L150-220mm (three times folding)   W95-165mm L150-220mm(four times folding)

电源、功率Power

电源:220V/1Ph/50Hz、功率:1.2KW

Power:220V/1Ph/50Hz; 1.2KW

气源、耗气量Air Pressure and Consumption

0.6Mpa、250L/Min

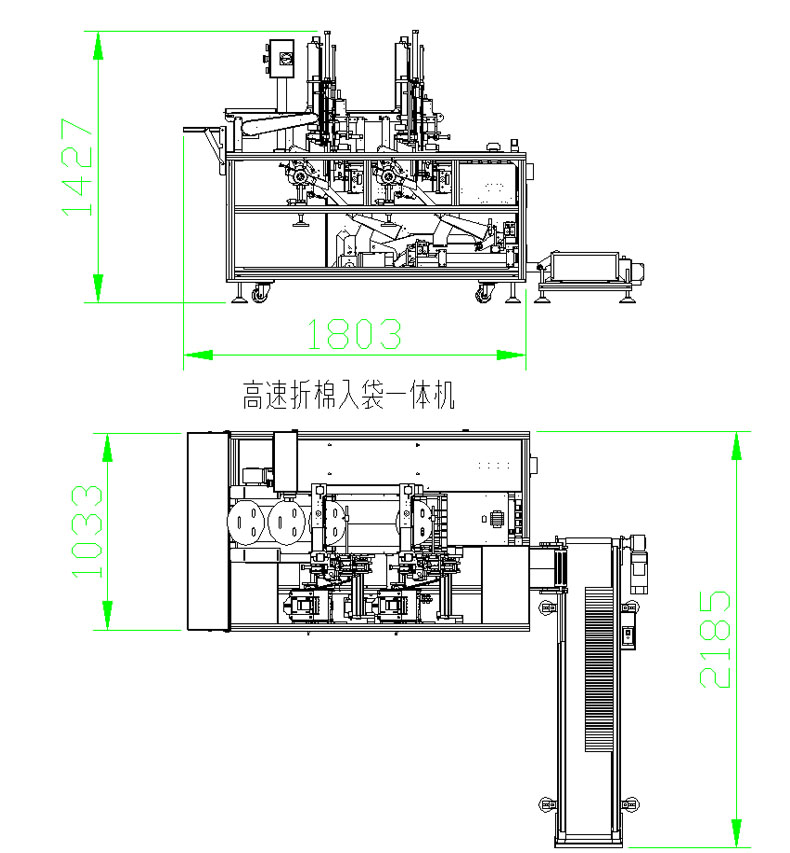

设备尺寸Machine Dimension

L1725*W1050*H1380
